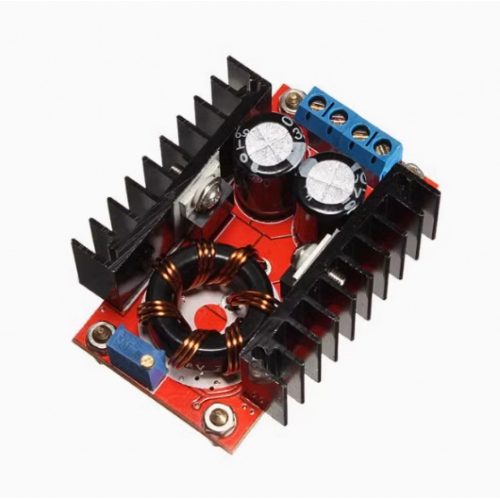

DC-DC Car Laptop Power Bank 10-32V to 12-35V Adjustable Boost Module 150W

Module properties

Non-isolated boost module

Rectification method

Asynchronous Rectification

Input voltage

10V-32V

Output voltage

12V -35V

Output Current

6A(max)

Conversion efficiency

94% (highest)

Switching frequency

65KHz

Output ripple

150mV (20M bandwidth)

Load Regulation

±0.5%

Voltage Regulation

±2.5%

Operating temperature

-40℃ to +85℃

size

65*56.5*23 (length*width*height) (mm)

Features:

★  The module uses ST original control chip, external ultra-low on-resistance MOSFET, ultra-high efficiency (up to 94% input 16V output 19V, 2.5A measured) , can reach 100W when used directly, and can reach 150W with enhanced heat dissipation (with fan)

★  This module uses high-quality materials. The top layer uses high-power plug-in components, and the bottom layer uses machine patch and reflow soldering. At the same time, each module undergoes a two-hour aging test before shipment to ensure high reliability.
