567 Tone Decoder

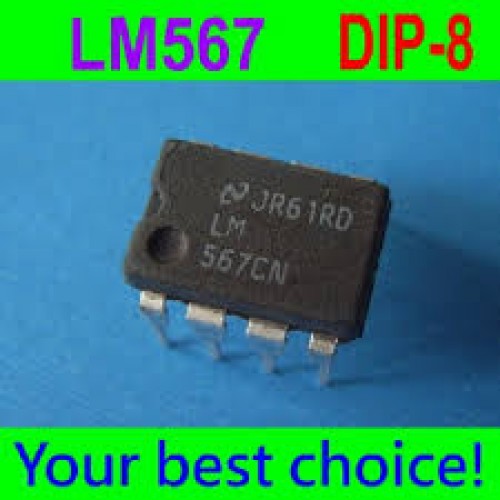

The LM567 and LM567C are general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the passband. It is also a very fun device to use for spacey guitar effects.



LM567 Pinouts
555 Basic Specifications	((for LM567/C version) Supply Voltage: 4.5v min, 9v max Current Draw: 6-13mA

Harsh Modulator

A strange ring-mod like sound effect. Drive the input with a fuzz box for more fun.

Hemmo/Christian Circuits

http://personal.inet.fi/koti/holmberg/schem.html
