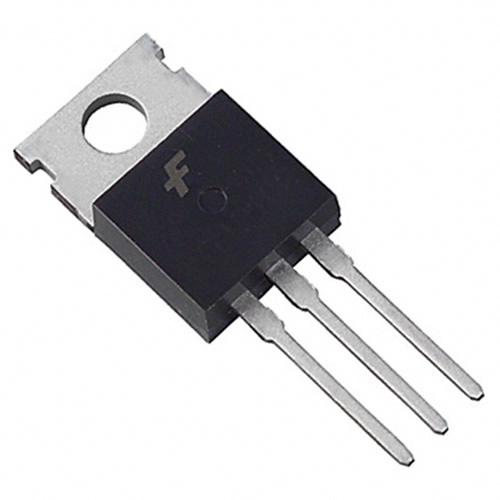

IRF3205

Specification	Value
Family	IRF3205
Channel Mode	Enhancement
Channel Type	N
Maximum Continuous Drain Current	110A
Maximum Drain Source Resistance	0.008Ohm@10V
Maximum Drain Source Voltage	55V
Category	Power MOSFET
Maximum Gate Source Voltage	±20V
Typical Fall Time	65ns
Typical Gate Charge @ Vgs	146nC(Max)@10V
Typical Input Capacitance @ Vds	3247pF@25V
Typical Rise Time	101ns
Typical Turn-Off Delay Time	50ns
Typical Turn-On Delay Time	14ns

Specification	Value
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	175°C
Mounting	Through Hole
Pin_Count	3
Supplier_Package	TO-220AB
Product Width	4.69mm(Max)
Product Height	8.77mm(Max)
Product Length	10.54mm(Max)
Product Type	MOSFET
Configuration	Single
Maximum Power Dissipation	200000mW
Number of Elements per Chip	1
