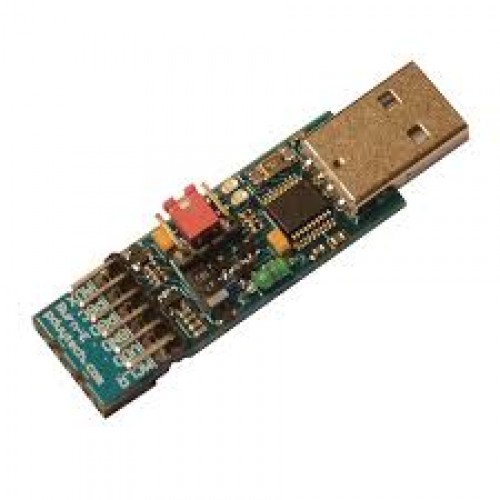

Burn-E Programmer

Burn-E is an universal programmer that can be used to program for almost all common ATmega and Microchip PICs microcontrollers.

Burn-E programmer is composed of 3 elements closely linked together: Hardware, Firmware and Software.

The operating system that Burn-E is used including Windows XP, Windows Vista, Windows 7 both 32-bits and 64-bits. Burn-E does not require driver installation, product features Plug and Play.

Specification

Board Rf4 fiber 2 layers – 1.0 mm thick.
Parts distribution on 1 side only.
Dimensions 62 x 20 x 9 mm (excluding plastic box).
Interface USB 2.0 Full speed 12 Mbits / s.
ICSP intake – 6pin, more convenient with 2 types of Male & Female.
Firmware update over the Burn-E software programmer.
OS: Win XP, Vista, Win 7 and Win 8 (32-bit and 64-bit).
No need to install Driver (Plug and Play).
Accessories: 6-pin bus cable and plastic containers.

Software

•  Burn-E Programmer.
• Required softwares: .Net Framework 32bit  or .Net Framework 64bit version 2.0 or later.

Quick Guide Download Software Loading AT89S / AVR / EEPROM Loading PIC / dsPIC
