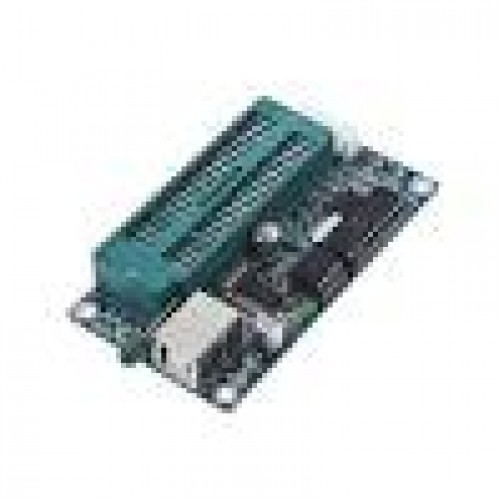

K150 USB PIC Programmer

The PIC programmer drivers and software are available to download: Download

When putting a PIC in the ZIF (Zero Insertion Force) socket, the PIC Programming software will indicate how it should be positioned. Pin 1 on the ZIF socket is located next to the locking lever.

Getting started

1. Run the "PL2303_Prolific_DriverInstaller_v1.7.0.exe" program in the "PIC Programmer Drivers" folder to install the driver.
2. Plug in your PIC Programmer.
3. Go to Start, and right click on "Computer". Click "Properties".
4. Click on the "Hardware" tab, and then click on "Device Manager".
5. Click the + next to "Ports (COM & LPT)". There should be an item labelled "Prolific USB-to-Serial Comm Port". There will be some text in brackets - such as "COM3". Make a note of the number.
6. Run the "microbrn.exe" file in the "PIC Programmer Software" folder.
   It will usually fail to reset the programmer the first time it is started - the correct Serial port has not yet been selected. This is normal.
7. Click on the "File" menu, and choose "Programmer". Now choose "K150".
8. Click on the "File" menu, and choose "Port". Enter the value you noted down earlier and click OK.
   The programming software should now reset your programmer and you are ready to go!

Notes

Please note that on Windows 7, the "Reset Programmer" option on the "Programmer" menu may not function correctly. All other functions work as expected. This is due to an issue between the Prolific USB to Serial drivers and the Microbrn software on Windows 7. This option works OK on older operating systems such as Windows XP.

•

• PIC 10:
  PIC10F202 PIC10F200 PIC10F204

  PIC10F206 PIC10F220 PIC10F222



• PIC 12C:

  PIC12C508 PIC12C508A PIC12C509 PIC12C509A
  PIC12C671 PIC12C672 PIC12CE518 PIC12CE519,



• PIC 12F:

  PIC12CE673 PIC12CE674 :

  PIC12F629 trên của PIC12F683 PIC12F675



• PIC 16C:

  PIC16C65B PIC16C65A PIC16C65 , PIC16C66 PIC16C67, PIC16C61 PIC16C505: PIC16C554 PIC16C558
  PIC16C62 PIC16C62A PIC16C62B, PIC16C63
  PIC16C63A PIC 16C64 PIC16C64A

  PIC16C620 PIC16C620A PIC16C621 PIC16C621A

  PIC16C622 PIC16C622A PIC16C71 PIC16C71A

  PIC16C72 PIC16C72A PIC16C73 PIC16C73A

  PIC16C73B PIC16C74 PIC16C74A PIC16C74B

  PIC16C76 PIC16C77 PIC16C710 PIC16C711

  PIC16C712 PIC16C716 PIC16C745 PIC16C765

  PIC16C773 PIC16C774 PIC16C84



• PIC 16F:

  PIC16F54 PIC16F57, PIC16F59 PIC16F627

  PIC16LF627A PIC16F628 PIC16F628A  PIC16F631 PIC16F648A PIC16F676, PIC16F677

  PIC16F684 PIC16F685 PIC16F687
  PIC16F689/PIC16F690 PIC16F688 PIC16F689 PIC16F689  PIC16F72

  PIC16F73 PIC16F74 PIC16F76 PIC16F77

  PIC16F737 PIC16F747 PIC16F767 PIC16F777

  PIC16F83 PIC16F84 PIC16F84A PIC16F87

  PIC16F88 PIC16F818 PIC16F819 PIC16F870

  PIC16F871 PIC16F872 PIC16F873 PIC16F873A

  PIC16F874 PIC16F874A PIC16F876 PIC16F876A

  PIC16F877 PIC16F877A PIC16F913 PIC16F914

  PIC16F916  PIC16F917



• PIC 18:

  PIC18F242 PIC18F248 PIC18F252 PIC18F258

  PIC18F442 PIC18F448 PIC18F452 PIC18F458

  PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2221

  PIC18F2320 PIC18F2321 PIC18F2331 PIC18F2410

  PIC18F2420 PIC18F2431 PIC18F2450  PIC18F2455

  PIC18F2480 PIC18F2510 PIC18F2520 thực hiện  PIC18F2550

  PIC18F2580 PIC18F2585 PIC18F2610  PIC18F2620

  PIC18F2680 PIC18F4220 PIC18F4221  PIC18F4320 PIC18F4321 PIC18F4331 PIC18F4410  PIC18F4320 PIC18F4331  PIC18F4450 PIC18F4455  PIC18F4480

  PIC18F4510 PIC18F4520 PIC18F4550 PIC18F4580

  PIC18F6520 PIC18F6525 PIC18F6621  PIC18F8520

  PIC18F8525 PIC18F8621
