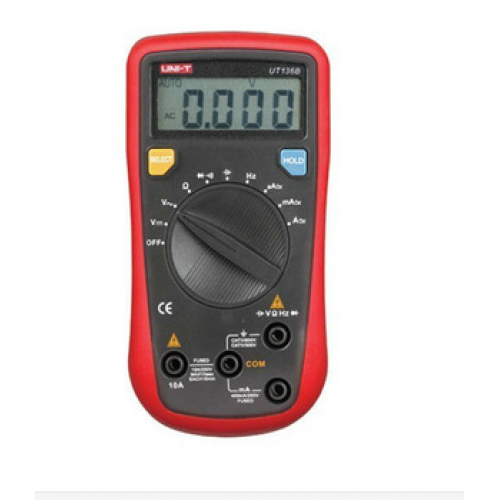

UNI-T UT136D Digital Multimeter (Just Arrival )

Specifications	Range	Best Accuracy
Model		UT136D
DC Voltage	400mV/4V/40V/400V/500V	±(0.8%+1)
AC Voltage	400mV/4V/40V/400V/500V	±(1.2%+3)
DC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.0%+2)
AC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.2%+5)
Resistance	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ	±(1.0%+2)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+3)
Duty Cycle	0.1%∽99.9%	√
Features
Diode		√
Continuity Buzzer		√
NCV		√
Auto Power Off		√
Low Battery Display		√
Input Impedance for Voltage Measurement	≥10MΩ	√
Data Hold		√
Max. Display		3999
General Characteristic
Power	9VBattery（6F22）
LCD Size	49mm×18mm
Product Color	Red +Grey
Product Net Weight	About 200g (Battery included）
Product Size	72mm×137mm×35mm
Standard Accessories	Test leads, Battery
Standard Packing	Giftbox, English Manual
Standard Quantity Per Carton	66 Pcs
Standard Carton Measurement	595mm×310mm×350mm
Standard Carton Gross Weight	About 22 Kg
