Digital Clamp Multimeter

Features

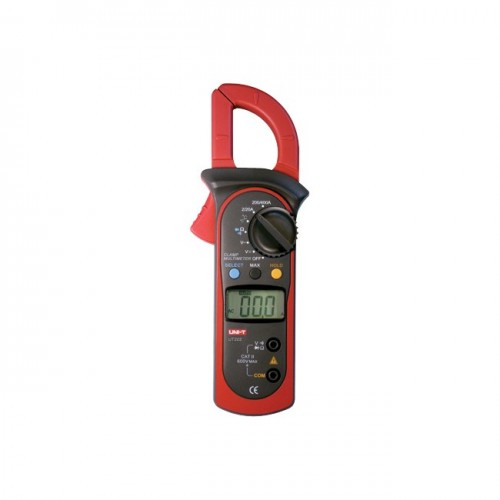

The UNI-T UT202 400-600A Digital Clamp Meter is a reliable piece of equipment that can be used to conduct a number of tests and measurements. The device can measure DC voltages of up to 600 volts in five measurement ranges, and AC voltages of up to 600 volts in four measurement ranges. It can also be used to measure AC currents of up to 400 amperes in four measurement ranges.

In addition, this UNI-T UT202 400-600A Digital Clamp Meter can be used to measure resistance of up to 20 mega ohms in six different measurement ranges, and can measure temperatures of up between -40 and 1,000 degrees C. It is also capable of conducting diode and continuity tests.

This clamp meter is very easy to use. It has an automaticselection feature, which chooses the most appropriate measurement type and range, but the dial on the body of the device can be used to manually override this. The digital clamp meter also has three buttons and two ports, one of which is a COM port. The jaws of the clamp, which has a 28 millimetre diameter, are operated using the trigger on the left of the body, which means the meter can be used with onehand.

This clamp testing device is very user friendly, and has an impressive range of additional features. The device has an LCD screen and a full icon display, including a ?low battery? symbol display. Additionally, the meter has a sleepfunction which activates when the device is left unused for 15 minutes. The meter also has a MIN/MAX function and a holdfunction.
