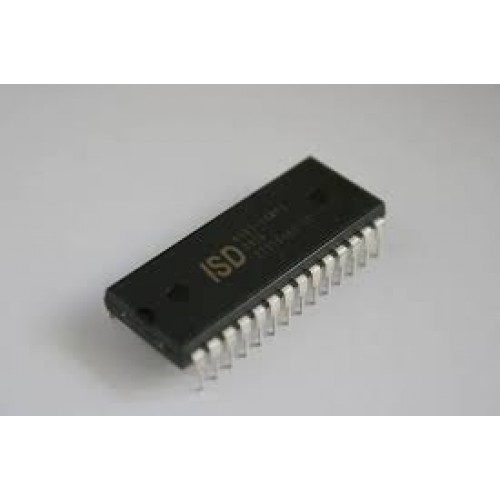

ISD4002
Product Code: ICs sound/music
Availability: In Stock
Availability: In Stock
Price: USD 6.25
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
ICs for sound/music
| Part No. | ISD4002 Series ChipCorder | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet |  ISD4002.pdf |
|||||||||||||||||||||||||
| Description | The ISD4002 ChipCorderR series provides high-quality, 3-volt, single-chip record/playback solutions for 2- to 4-minute messaging applications ideally for cellular phones and other portable products. The CMOS-based devices include an on-chip oscillator!Banti-aliasing filter!Bsmoothing filter!BAutoMuteR feature!Baudio amplifier!Band high density multilevel Flash memory array. The ISD4002 series is designed to be used in a microprocessor- or microcontroller-based system. Address and control are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count. Recordings are stored into the on-chip Flash memory cells!Bproviding zero-power message storage. This unique single-chip solution utilizes Nuvoton!|s patented multilevel storage technology. Voice and audio signals are directly stored onto memory array in their natural form!Bproviding high-quality voice reproduction. | |||||||||||||||||||||||||
| Diagram | Block Diagram |
|||||||||||||||||||||||||
Application Diagram |
||||||||||||||||||||||||||
| Features |
|
|||||||||||||||||||||||||
| Package | DIP!BSOIC!BTSOP!BDie | |||||||||||||||||||||||||
| Other Files | N/A | |||||||||||||||||||||||||
| Development Tools | Evaluation System: ISD-ES302 | |||||||||||||||||||||||||
| Others |
Parametric
|
