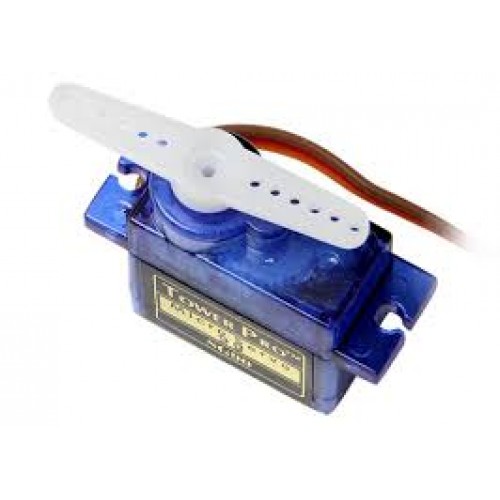

MIcro Servo Motor SG90

Specifications:

• Torque:................................... 25.0 oz-in (1.80 kg-cm) at 4.8V
• Speed:.................................... 0.1sec/60° (4.8V)
• Voltage:.................................. 4.0V to 7.2V, 4.6V - 5.2V nominal
• Running current (with no mechanical load) with 5V supply:.... 220 ±50mA
• Stall current (horn locked) with 5V supply:.......................... 650 ±80mA
• Idle current with 5V supply:........................................... 6 ±10mA
• Dimensions:.............. 0.91in x 0.48in x 1.14in (23mm x 12.2mm x 29mm)
• Weight:.................................. 0.32oz (9g)
• Dead band width:....................... 10µs
• Operating Temperature range:........... -22°F to 140°F (-30°Cto 60°C)
• Universal "S" type connector fits most receivers

Arduino Tutorials:

• Knob: control the shaft of a servo motor by turning a potentiometer
• Sweep: sweeps the shaft of a servo motor back and forth
