Servo RB-431 (360 degree)

Description:

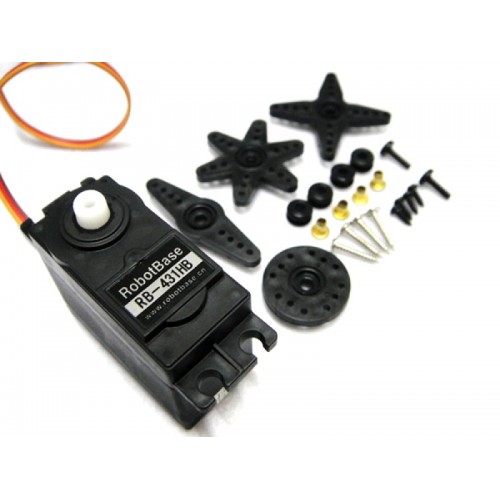

Here, for all your mechatronic needs, is a simple, high quality continuous RB-431 360-rotation servo motor. A standard 3-pin power and control cable is attached and all hardware shown is included.

Specifications:

• Control System: +Pulse Width Control 1500usec Neutral
• Operating Voltage: 4.8—6.0 Volts
• Operating Temperature Range: 0 to +60 Degree C
• Operating Speed (4.8V): 0.17sec/60° at no load
• Operating Speed (6.0V): 0.40sec/60° at no load
• Stall Torque:(4.8V): 2.9kg?cm ;(6.0V):4.6kg?cm
• Current Drain (4.8V): 7.6mA/idle and 160mA no load operating
• Current Drain (6.0V): 7.9mA/idle and 190mA no load operating
• Connector Wire Length: 300mm
• Dimensions: 40.2mm x 20.2mm x 43.2mm
