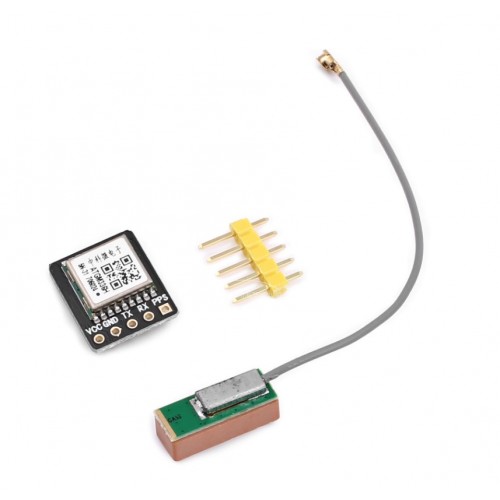

GPS Beidou BDS dual-mode module satellite positioning navigator ATGM336H replaces NEO-M8N

Link: https://pan.baidu.com/s/1AUPCT8EGwCxAoxGjydVYIA

Extraction code: 1234

After copying this content, open the Baidu Netdisk mobile app for more convenient operation - Sharing from Baidu Netdisk super member V3

After copying this content, open the Baidu Netdisk mobile app for more convenient operation.



  ATGM336H-5N series modules are the general name for a series of small-sized, high-performance BDS/GNSS full-constellation positioning and navigation modules. This series of module products are based on Zhongke Micro's fourth-generation low-power GNSS SOC single chip - AT6558, which supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite Navigation System), the United States' GPS, Russia's GLONASS, and the European Union GALILEO, Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip, including 32 tracking channels, which can receive GNSS signals from six satellite navigation systems at the same time, and achieve joint positioning, navigation and timing. ATGM336H-5N This series of modules has the advantages of high sensitivity, low power consumption, and low cost. It is suitable for vehicle navigation, handheld positioning, and wearable devices. It can directly replace Ublox MAX series modules.



Output protocol

Output protocol: ATGM332D-5N series modules use UART as the main output channel and output according to the protocol format of NMEA0183. For specific information, please refer to the "CASIC Multi-mode Satellite Navigation Receiver Protocol Specification".



•

• Excellent positioning and navigation function, supports single system positioning of BDS/GPS/GLONASS satellite navigation system, as well as any combination of multi-system joint positioning, and supports QZSS and SBAS systems

•

• Support A-GNSS

•

• Cold start capture sensitivity: -148dBm

•

• Tracking sensitivity: -162dBm

•

• Positioning accuracy: 2.5 meters (CEP50, open area)

•

• Time to first fix: 32 seconds

•

• Low power consumption: continuous operation <25mA (@3.3V)

•

• Built-in antenna detection and antenna short circuit protection function

•
