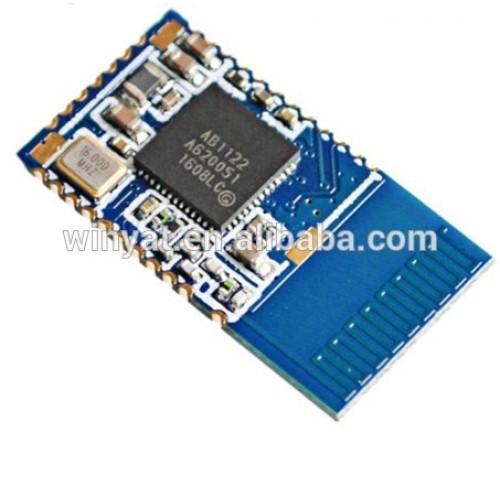

DXBT12 Bluetooth dual mode serial port transmission BLE4.0+2.0 SPP iOS Android wireless module

DXBT12 Bluetooth dual mode serial port transmission BLE4.0+2.0 SPP iOS Android wireless module
Product Code: bluetooth
Availability: In Stock
Price: USD 7.00
Qty:     - OR -   Add to Wish List
Add to Compare

Features:
Bluetooth protocol: Bluetooth Specification V4.0 BLE, send and receive no byte limit, have a longer distances than traditional Bluetooth communication work Frequency: 2.4 GHz ISM band
Modulation method: GFSK (Gaussian Frequency Shift Keying)
Acuity:≤-84dBm at 0.1% BER
Security features: Authentication and encryption Support services: Central and Peripheral UUID FFE0, FFE1, FFE2 (FFE0 UUID for service, FFE1 for reading data channels, FFE2 write data channel)
Power consumption: low power consumption modes: standby current 1-3 ma, 3 ma when iOs mobile phone, android 8 ma transmission. Normal working mode: 8mA for standby and 8mA for transmission.
Power supply: + 3.3 VDC 50 mA
Appearance size: 22 mm x 12 mm x 2 mm
bluetooth certification: ROHS REACH
Transmission distance: 10 to 12 meters
