The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the band split filter and digital decoder functions. The filter section uses switched   capacitor   techniques   for high and low group filters;   the decoder uses digital counting techniques to detect and decode all 16 DTMF tone-pairs into a 4-bit code.  External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface.

Features



·         Low power consumption

·         Internal Gain setting amplifier

·         Adjustable guard time

·         Power-down mode | Inhibit mode



Packing Slip

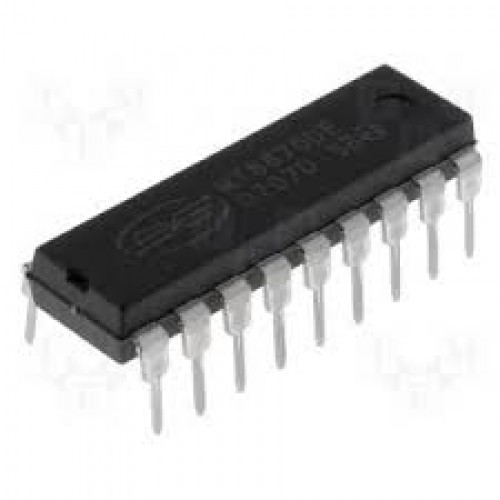

1 x MT8870 Complete DTMF Receiver Decoder



Reference



ü  MT8870 Datasheet



DTMF Receiver Reference Schematic:

.
